Founders
Founders: Paul Bryson, Mike Braithwaite, Tim Marshall
70+ combined years of product development and over 100 Patents issues and pending.
Previously developed products for/with AMX, Crestron, ClearOne, GE, NetStreams, Screen Innovations, Somfy & others
Paul Bryson
Our Chief Technology Officer
came to Modern Atomics by way of pit stops @ Screen Innovations, ClearOne, NetStreams, GE Smart, & AMX
Michael Braithwaite
Our Chief Biological Officer and Chairman of the board
came to Modern Atomics by way of pit stops @ Screen Innovations, ClearOne, NetStreams, GE Smart, & Crestron
Founders
Founders: Paul Bryson, Mike Braithwaite, Tim Marshall
70+ combined years of product development and over 100 Patents issues and pending.
Previously developed products for/with AMX, Crestron, ClearOne, GE, NetStreams, Screen Innovations, Somfy & others
Paul Bryson
Our Chief Technology Officer
came to Modern Atomics by way of pit stops @ Screen Innovations, ClearOne, NetStreams, GE Smart, & AMX
Michael Braithwaite
Our Chief Biological Officer and Chairman of the board
came to Modern Atomics by way of pit stops @ Screen Innovations, ClearOne, NetStreams, GE Smart, & Crestron
The Modern Atomics team has previously raised over $28.7MM from lead investor Austin Ventures
Timmothy Marshall
Our Chief Power Officer, and Chief Finacial Officer
came to Modern Atomics by way of pit stops @ Screen Innovations, ClearOne, & NetStreams
Tina Marie
Tina works hard every day in the clean room environment...and in between her top-secret military projects, she manages to squeeze in a few power projects for Modern Atomics...

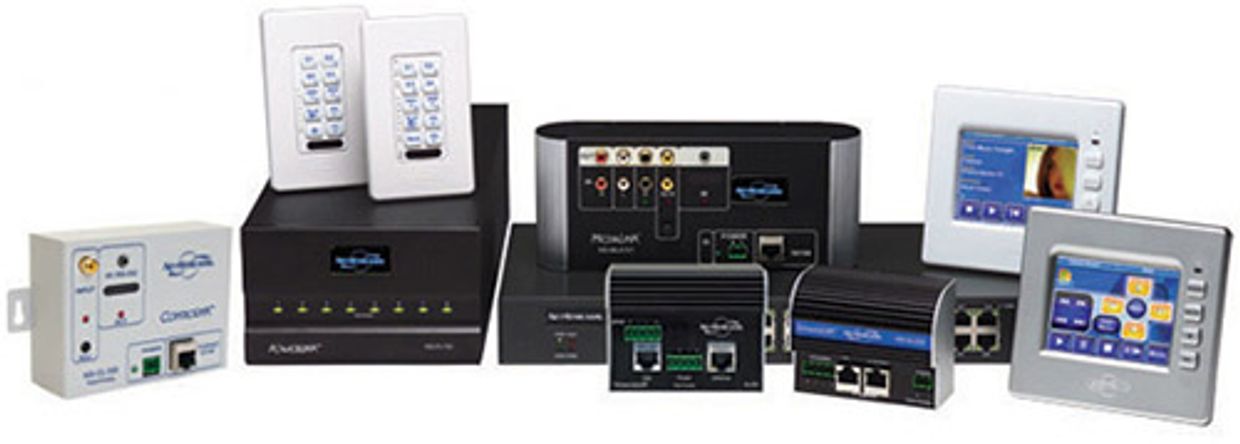

The Modern Atomics Team developed the world's first AVoIP products.
Designed, Engineered, Patented, and manufactured (Initially) in Austin, TX, USA from 2001-2018
The Modern Atomics team helped to develop the world's First IP Networked Loudspeaker

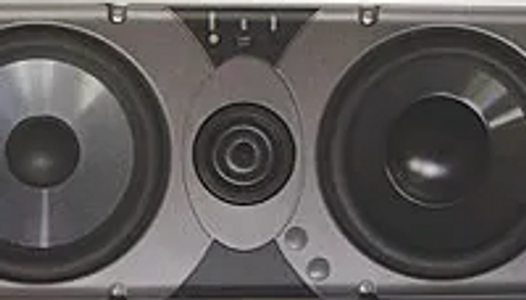

Polk Audio LC265i-IP In-Wall Speaker
Developed with Polk Audio and used a StreamNet license from NetStreams. The LC265i-IP is the first active in-wall speaker for home audio powered by digital amplifiers that you can control via an Internet Protocol (IP)–based system. Electronics made in Austin, TX 2004-2009

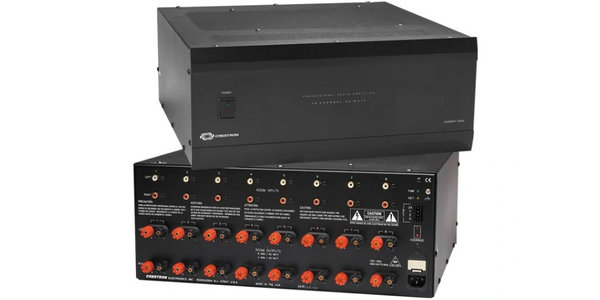

Mike produced the world's first 16 Channel Network Amplifier
CNAMPX-16X60 is one of Mike's first commercial products.
- Audiophile-grade 16-channel amplifier
- High-performance Class AB design
- Discrete high-current, bipolar output transistors
- Built-in Los Angeles, CA USA 2000
Founders
Founders: Paul Bryson, Mike Braithwaite, Tim Marshall
70+ combined years of product development and over 100 Patents issues and pending.
Previously developed products for/with AMX, Crestron, ClearOne, GE, NetStreams, Screen Innovations, Somfy & others
Paul Bryson
Our Chief Technology Officer
came to Modern Atomics by way of pit stops @ Screen Innovations, ClearOne, NetStreams, GE Smart, & AMX
Michael Braithwaite
Our Chief Biological Officer and Chairman of the board
came to Modern Atomics by way of pit stops @ Screen Innovations, ClearOne, NetStreams, GE Smart, & Crestron
The Modern Atomics team has previously raised over $28.7MM from lead investor Austin Ventures
Timmothy Marshall
Our Chief Power Officer, and Chief Finacial Officer
came to Modern Atomics by way of pit stops @ Screen Innovations, ClearOne, & NetStreams
Tina Marie
Tina works hard every day in the clean room environment...and in between her top-secret military projects, she manages to squeeze in a few power projects for Modern Atomics...
The Modern Atomics Team developed the world's first AVoIP products.
Designed, Engineered, Patented, and manufactured (Initially) in Austin, TX, USA from 2001-2018
The Modern Atomics team helped to develop the world's First IP Networked Loudspeaker
- Polk Audio LC265i-IP In-Wall Speaker
Developed with Polk Audio and used a StreamNet license from NetStreams. The LC265i-IP is the first active in-wall speaker for home audio powered by digital amplifiers that you can control via an Internet Protocol (IP)–based system. Electronics made in Austin, TX 2004-2009
Mike produced the world's first 16 Channel Network Amplifier
CNAMPX-16X60 is one of Mike's first commercial products.
- Audiophile-grade 16-channel amplifier
- High-performance Class AB design
- Discrete high-current, bipolar output transistors
- Built-in Los Angeles, CA USA 2000
North America MSRP Price Lists
P0WER.AI
EdgeAI Controlled Power Products

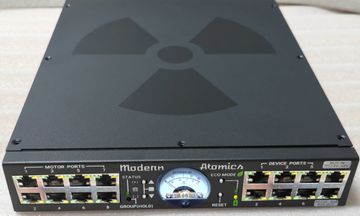

Reaktor 72Nm-22 Shades (DC-22) 1RU Half Width
EdgeAI Controlled Plenum-Rated 22 Motor Power Distribution Unit (PDU) and support for 6, 485 devices.
includes ECO MODE and auto programming for User interfaces.
Includes a Passive PoE Injector, (14) 5.08 pitch 5-position Terminal Blocks, and one set of Rack Ears.

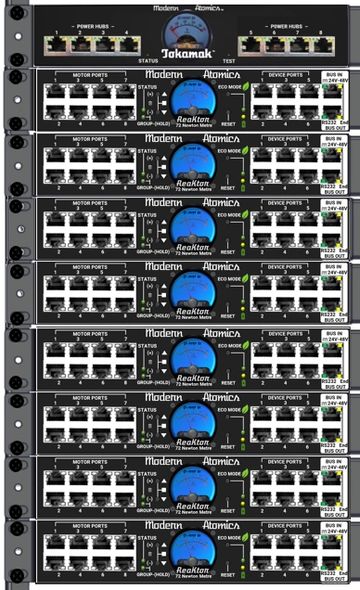

Reaktor 576Nm-176 Shades (DC-8PAK) 5RU
(8) EdgeAI Controlled Plenum-Rated 22 Motor Power Distribution Units (PDU) and support for 6, 485 devices.
176 Low Voltage Shades
includes ECO MODE and auto programming for User interfaces.
Includes (1) Tokamak, (112) 5.08 pitch 5-position Terminal Blocks, & 4 sets of Rack ears/Joiners
Reaktor 72Nm-22 Shades (DC-22+WiFi) 1RU Half Width
EdgeAI Controlled Plenum-Rated 22 Motor Power Distribution Unit (PDU) and support for 6, 485 devices.
includes ECO MODE and auto programming for User interfaces.
Includes a Passive PoE Injector, (14) 5.08 pitch 5-position Terminal Blocks and one set of Rack Ears.
Includes Atomic WiFi Module

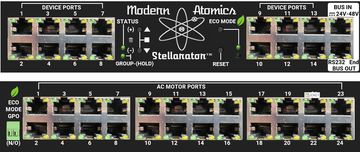

Stellarator (AC-24) 24 AC powered Shades 1RU Half Width
EdgeAI Controlled Plenum-rated 485-hub for up to 24 AC-powered motors and support for up to 14, 485 devices such as keypads or RF receivers, includes ECO MODE GPO connection for power strips and 3rd party control systems and auto programming for User interfaces. Includes a Passive PoE Injector and one set of Rack ears

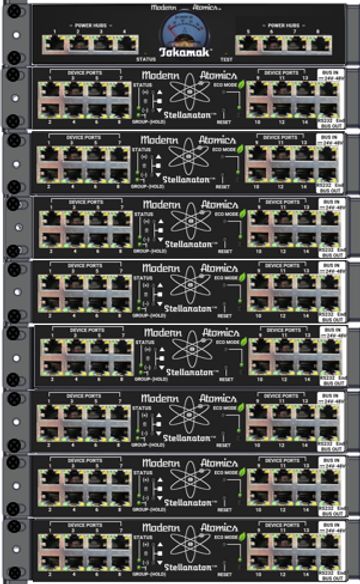

Stellarator (AC-8PAK) 192 AC powered Shades 1RU Half Width
EdgeAI Controlled Plenum-rated 485-hub for up to 192 AC-powered motors and support for up to 14, 485 devices such as keypads or RF receivers, includes ECO MODE GPO connection for power strips and 3rd party control systems and auto programming for User interfaces. Includes (1) Tokamak, & 4 sets of Rack ears/Joiners
Stellarator(AC-24+WiFi) 24 AC powered Shades 1RU Half Width
EdgeAI Controlled Plenum-rated 485-hub for up to 24 AC-powered motors and support for up to 14, 485 devices such as keypads or RF receivers, includes ECO MODE GPO connection for power strips and 3rd party control systems and auto programming for User interfaces. Includes a Passive PoE Injector and one set of Rack ears
Includes Atomic WiFi Module
Tokamak 1,152Nm-192 Shades (MA-8) Core Fusion Hub 1RU Half Width
Plenum-Rated Fusion Core Hub Power Distribution Unit (PDU) for Large systems of up to 176 DC shades or up to 192 AC Shades
Power up to eight Reaktors/Stellarators/Colliders
Includes IEC 6' Power Insertion cable, and one set of rack ears
3 Motor TRITON 18Nm-3 AC Powered Shades (AC-3) Double Gang Box
Low Voltage Class 2 Interface for up to three AC-powered Motors, for use with Reaktor
Includes double-gang wall box for old construction
3 Motor TRITON 54Nm-9 AC Powered Shades (AC-3PAK) Double Gang Box
Low Voltage Class 2 Interface for up to nine AC-powered Motors, for use with Reaktor
Includes double-gang wall box for old construction
P0E.AI
EdgeAI Controlled PoE 802.3BT Products
Collider (PoE-24) 144Nm-24 PoE Shades 1RU Half Width
Plenum-rated PoE 802.3 bt Gigabit Midspan PDU
ai-controlled
All 24 ports can negotiate for up to 90W each concurrently
Can Power up to 24 Somfy PoE Motors (Any model)
Built-in 14 port 485 hub for devices such as keypads or RF receivers
Auto programming for User interfaces
Control PoE Motors from a Decoflex
Built-in DHCP and LLDP
128 AES Encryption
CoAP
NO SETUP - Plug and Play
NO FANS
The BUS OUT can also be used as an 802.3 uplink for 3rd party control.
Includes Passive PoE Injector & one set of Rack ears

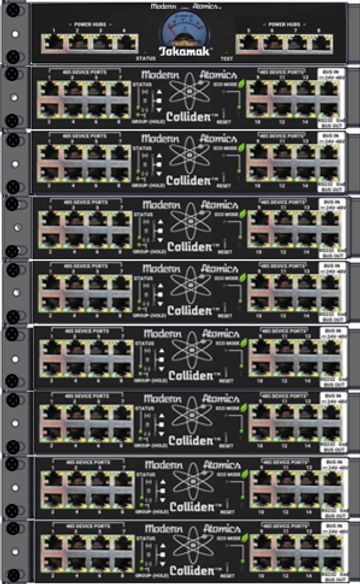

Collider (PoE-8PAK) 1,152Nm-192 PoE Shades 5RU
(8) Plenum-rated PoE 802.3 bt Gigabit Midspan PDUs
ai-controlled
All ports can negotiate for up to 90W each concurrently
Can Power up to 192 Somfy PoE Motors (Any model)
Built-in 14 port 485 hub for devices such as keypads or RF receivers
Auto programming for User interfaces
Control PoE Motors from a Decoflex
Built-in DHCP and LLDP
128 AES Encryption
CoAP
NO SETUP - Plug and Play
NO FANS
The BUS OUT can also be used as an 802.3 uplink for 3rd party control.
Includes (1) Tokamak & 4 sets of Rack ears/Joiners

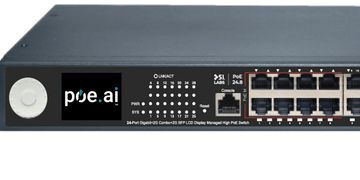

24-Port 802.3 BT Switch 36Nm-up to 24 PoE Shades #800456 1RU
SILABS High-Power PoE bt Gigabit Switch
Fully Managed (non-ai controlled)
Can Power up to 24 Somfy 30mm 1.5Nm PoE Motors
Can power up to 8 Somfy 40mm 4Nm PoE Motors
Can Power up to 6 Somfy 40mm 6Nm PoE Motors
Built-in GUI
Built-In Web Server
1RU Full Rack
Support and Warranty for this product only available from Modern Atomics.
Modern Atomics Accessories
Installation and associated parts

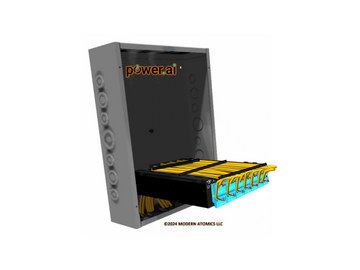

UL Reaktor Enclosure kit for up to 44 DC Shades or 48 AC Shades
16" x 12" Includes folding din-rails and metal cover. Can accommodate up to two half rack units (2h/RU) (Does not include any Reaktor, Stellarator or Tokamak units)

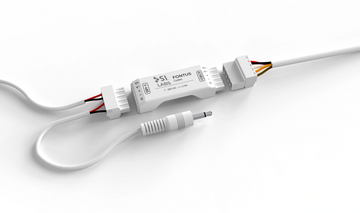

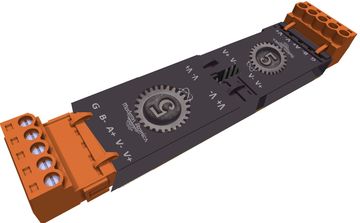

VBYV (DC-1) 12Nm
12 Nm Ultra-high current DC CODEC for use with Reaktor
Works with any 12-18AWG two-conductor cable including Romex or coaxial (RG6)
Directly connects with any Somfy SDN motor with 5.08 pitch connector
128-bit encryption
Includes; (1) 5-position 5.08 Female Block
(1) 5-position 5.08 Male Block
(2) 2-position 5.08 Male Blocks
(2) 2-position 5.08 Female Blocks
Built-in Din Rail Mounting
Sold in pairs $129, or 28-unit system pack for $1499

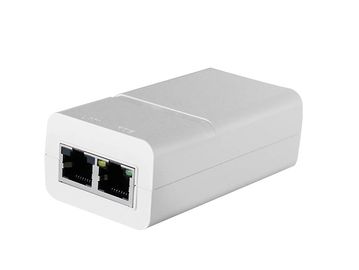

Passive PoE Injector
Can be used as a 485 in-line Bus power supply
Includes 6' AC cable.
This the same unit as included with Reaktors

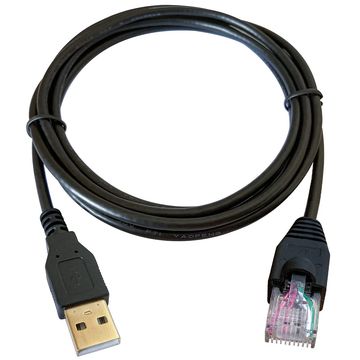

BUSter
Used for advanced 485 motor, RF receiver, and keypad configuration
This USB powered 485 RJ45 cable is plug and play and simple to use, and eliminates the need for any other power supplies when programming any 485 keypad or RF receiver / transceiver or AC powered motor
Has protection for use with AC motors

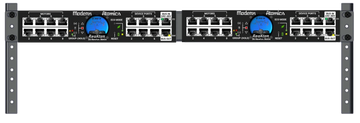

EIA/TIA FULL Rack Mount Join Kit
Allows multiple half-rack units to be joined together.
Includes, din rail, (2) Din Rail Mounts, (1) din fascia, (set of screws), (Set of Allen stops)
Atomic WiFi Dongle
Used with Reaktor and Stellarator for WiFi connection to 3rd party control systems such as a Bond Bridge Pro, Alexa, Google, Apple, Josh.ai etc...

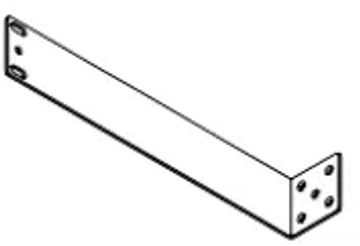

Long Rack Ear
Allows a single half-rack unit to be installed in full 19" rack locations.
Includes, a set of enclosure screws
Modern Atomics Men's Shirt
Show off your Modern Atomics pride with this very high-end black Golf Shirt, with custom white embroidered Modern Atomics Logo
Modern Atomics Woman's Shirt
Show off your Modern Atomics pride with this very high-end black woman's v-neck open shoulder, with custom white embroidered Modern Atomics Logo
Modern Atomics Cap
Show off your Modern Atomics pride with this very high-end black baseball cap, with custom white embroidered Modern Atomics Logo
(Now Shipping)
IODIDE
Use only as directed, not for daily use. Should be left on the jobsite with any Reaktor, or Collider installation.
SIlabs
Modern Atomics Developed OEM Labeled Compatible Products Support and Warranty for these products is provided by Modern Atomics ONLY. (SI will not be able to provide any support or warranty for these products)

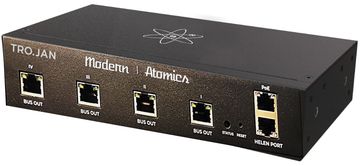

TRO.JAN #201559
IEEE 802.3 PoE IP Shade Control System
Astronomical real-time clock, scheduler, & automation controller for any Somfy RTS, SDN (485), & Zigbee Motors
Configuration for all Somfy Keypads, Remotes, RF & SDN sun, wind & rain sensors
Compatible with Bond Bridge Pro, & Olibra sun, wind & rain sensors & RF keypads
Compatible with TaHoma Switch RTS & Zigbee Gateway
3rd party support for Josh.ai, Alexa, Siri, Apple Homekit, & Google Assistant
Crestron SIMPL, Crestron Home, Control4, Savant, Elan, RTI, URC

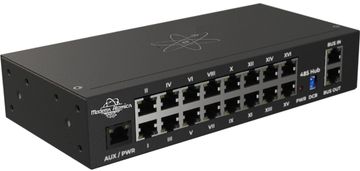

16-PORT 485 DATA HUB #302321
16-PORT 485 DEVICES / AC MOTORS (RJ45)
BUS INPUT (RJ45)
BUS OUTPUT (RJ45) With End-of-Line LED
AUX POWER INPUT (RJ45)
DC BIAS
BUS POWER STATUS LED
Compatible with TRO.JAN, Reaktor, Stellarator, and Collider.
NOT Compatible with Tokamak
Support and Warranty for this product only available from Modern Atomics.

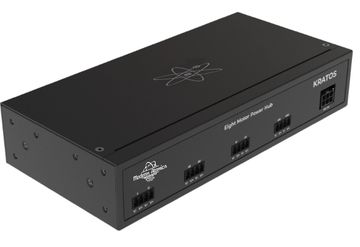

LV Power Supply 16Nm #201590
8-PORT 24VDC Power Distribution Unit
The KRATOS™ Low Voltage kit provides power for up to eight Zigbee or RTS Low Voltage shades or screens. This kit includes an 8-motor power hub, and a 250-watt 24v DC power supply, and all mounting and wiring accessories. Can be mounted in a rack or in a structured wiring enclosure.
Also Available as a 12VDC PDU
Support and Warranty for this product only available from Modern Atomics.
Zigbee Coordinator/Edge Router #302299
Professional Decora or Din Rail mounted Zigbee 3.0 Coordinator for up to 150 Nodes and or
Zigbee 3.0 Mesh Router for up to 16 nodes
Power from TRO.JAN, or TRO.Y 2 or Aux Power Input 7-48vdc
Includes PoE Injector and white trim plate and wall screws
Support and Warranty for this product only available from Modern Atomics.
RF TRANSCEIVER #302308 "The RF Shade Swiss Army Knife"
Professional Decora or Din Rail mounted Sub-GHz 485 Transceiver
Built-in 2 port min 485 hub
Can learn up to 16 RF remotes
Compatible with any Somfy, Olibra, or Lutron Pico remotes, Sensors and keypads
Can Pair with up to 32 RTS Motors
Compatible with any Somfy 485/RTS Motors
Compatible with any Somfy 485 devices
Can be used as an RTS SMART REPEATER
Power from 485 Hub or Aux Input or USB 7-24vdc
GPI/O for Dry Contact, 12v Trigger, 0-10v, or Infrared
Includes white trim plate and wall screws
Support from MA
CODEC SHADE CONTROLLER 4Nm #201371
485 Shade codec
Compatible with all Somfy SDN motors
GPI/O
Dry Contact Input
Latched 12v-Trigger Input
Infrared Input
DC Power Input 7-28v
Can use CAT-5
Romex
Speaker Wire
RG-6 Coaxial Cable
Support and Warranty for this product only available from Modern Atomics.
Contact your local Modern Atomics Sales Rep for Dealer or distributor level pricing.
